ADTEC’s Exclusive Sales of Reliable Secondhand Equipment

①Overhauled … All items are meticulously repaired and ready for production work.
②Custom specifications … As far as possible we will reflect specifications to your needs.
③Warranty … All items come with the same 6-month warranty as new products.
④High-priced purchase … We will purchase your unneeded exposure systems at a high price
(only our equipment)

Line Up（September 2024 update）

ADEX5000S Automatic Exposure System for Solder Resist

ADEX5000S photo

Exposure method

Vacuum contact

Board size

―

Split exposure

―

Exposure light source

2-lamp/5kW ultra-high-pressure mercury lamp

Resolution

SRO = Φ50 μm

Alignment

±5μm

Flow direction

Right to left (R flow)

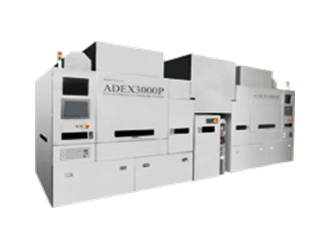

ADEX3000PV Automatic Exposure System for Inner/Outer Layer Circuits

Exposure method

Vacuum contact

Board size

―

Split exposure

―

Exposure light source

1-lamp/5kW ultra-high-pressure mercury lamp

Resolution

L/S = 40/40μm

Alignment

±10μm

Flow direction

Left to right (L flow)

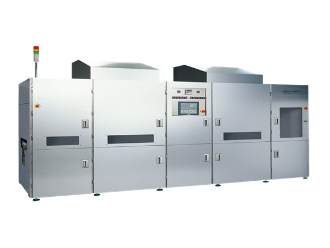

EV-2400 Automatic Exposure System for Inner/Outer Layer Circuits

Exposure method

Vacuum contact

Board size

250×330～535×635mm

Split exposure

―

Exposure light source

5kW ultra-high-pressure mercury lamp

Resolution

L/S = 75/75μm

Alignment

±10μm

Flow direction

Right to left (R flow)

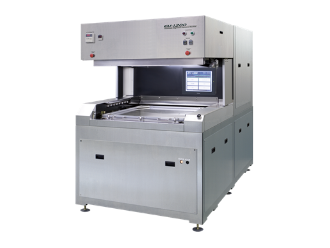

EV-1200 Semi-Automatic Exposure System for Inner/Outer Layer Circuits

Exposure method

Vacuum contact

Board size

250×250～535×635mm

Split exposure

―

Exposure light source

5kW ultra-high-pressure mercury lamp

Resolution

L/S = 75/75μm

Alignment

±10μm

Flow direction

―

EV-800 Semi-Automatic Exposure System for Inner/Outer Layer Circuits for smaller boards

Exposure method

Vacuum contact

Board size

100×100～350×350mm

Split exposure

―

Exposure light source

5kW ultra-high-pressure mercury lamp

Resolution

L/S = 30/30μm

Alignment

±10μm

Flow direction

―

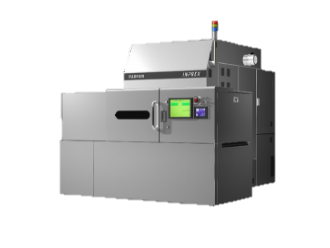

IP-3600S Direct Imaging Exposure System for Circuit Formation

Exposure method

Direct imaging

Board size

―

Split exposure

―

Exposure light source

Laser Diode / 405nm

Resolution

L/S = 35/35μm

Alignment

±15μm

Flow direction

Left to right (L flow)
