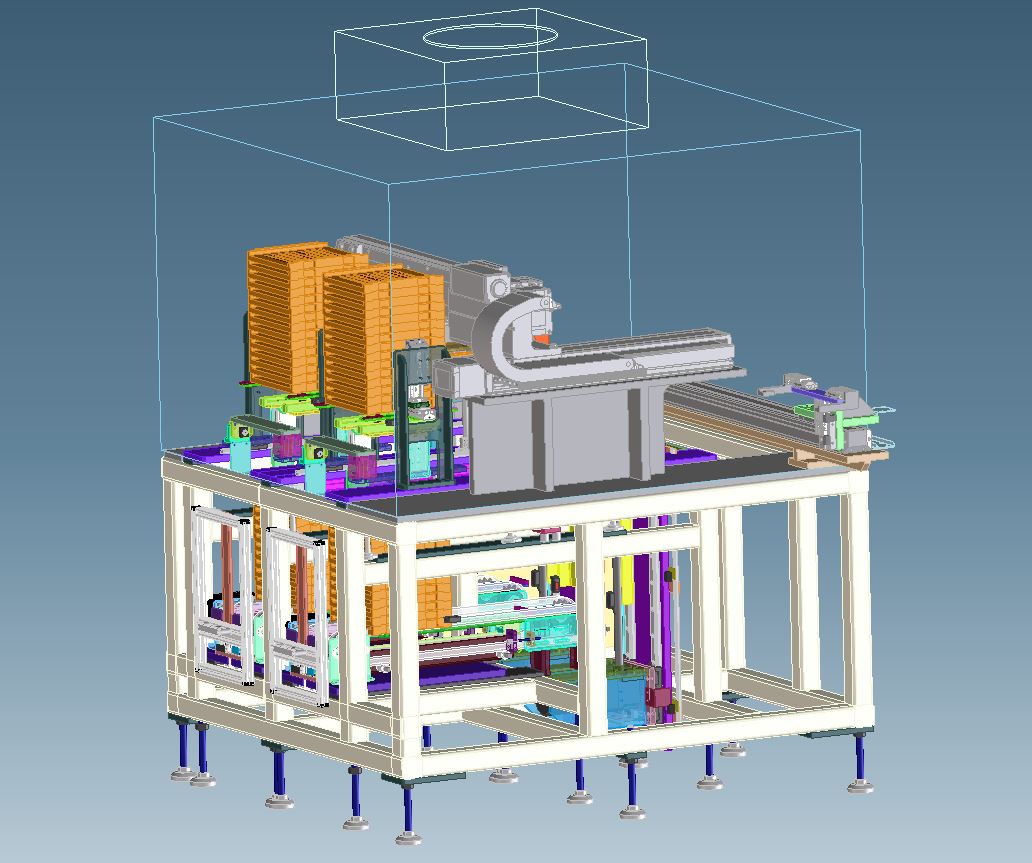

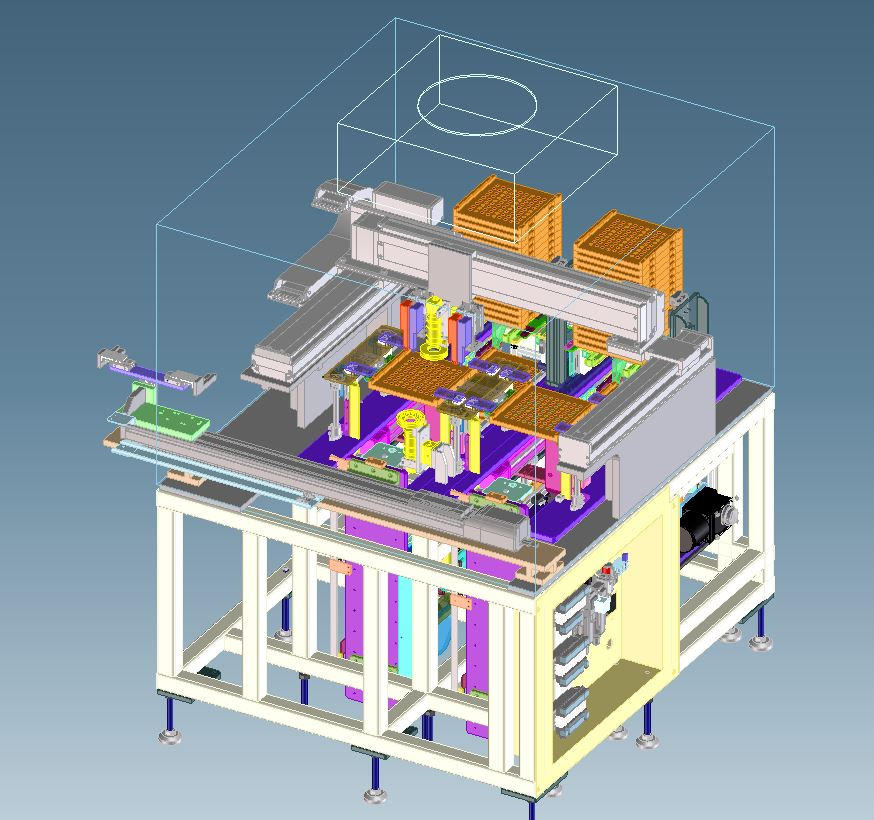

Resin Lens Unit Assembly Machine

This device is designed to automate the assembly process of small lens units, which was challenging to perform manually. It efficiently handles a series of tasks, including picking up parts from the tray, assembly, inspection, storage in the product tray, and transfer to the next process, all with a single unit. The compact design, which integrates multiple processes into one machine, achieves space-saving and labor-saving benefits.

・Image inspection function: The camera-based image inspection allows for checking the position, scratches, dirt, and debris on both the front and back surfaces.
・Space-saving: The compact design integrates multiple processes into a single unit, achieving space-saving benefits.
・Labor-saving: Automation reduces the burden on operators and contributes to a decrease in labor requirements.
