Solar Simulator

By utilizing a xenon short-arc lamp as the main light source and incorporating uniquely developed optical filters and lenses, this device artificially generates light that approximates sunlight. This equipment inherits Wacom Denso's extensive experience and technology, and has a proven track record of delivery to numerous research institutions and solar panel manufacturers both domestically and internationally, who highly regard its performance.

・This light source is ideal for evaluating the IV characteristics of solar cell modules and submodules, as well as for durability testing of materials and substances using simulated sunlight.
・It is a standard model with constant illumination.
・It provides an optimal match for the visible light range suitable for measuring perovskite solar cells, achieving a match factor of ±15% (350–700nm), surpassing the Class A match factor of ±25%..
・Compliance standards: JIS C 8904-9/IEC 60904-9 Class AAA.

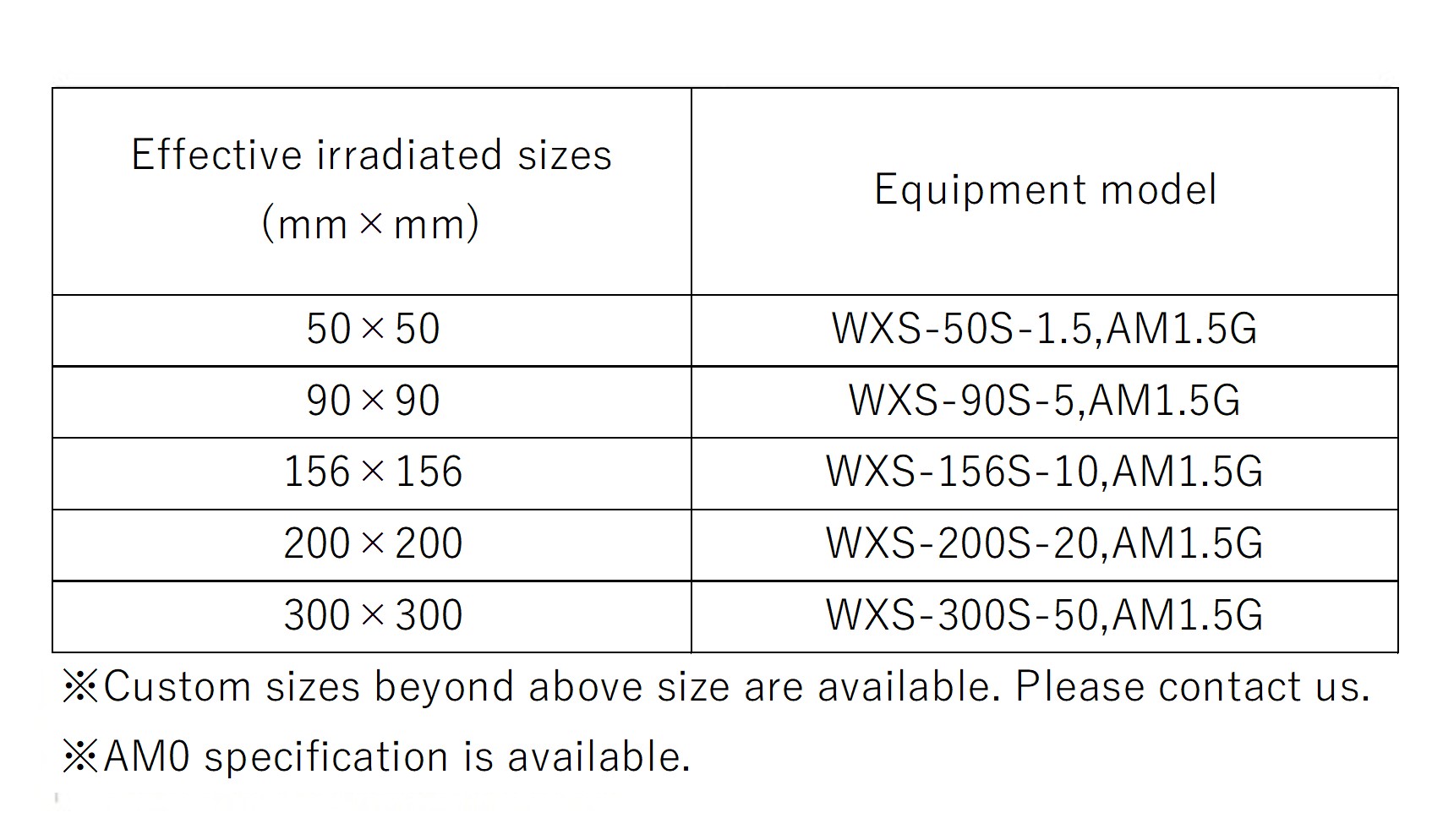

・Effective irradiation area sizes: □90mm, □100mm, □156mm, □200mm, □300mm, □500mm (custom sizes beyond those listed are also available. Please consult us).
・AM0 specification for use in space development is also available.
